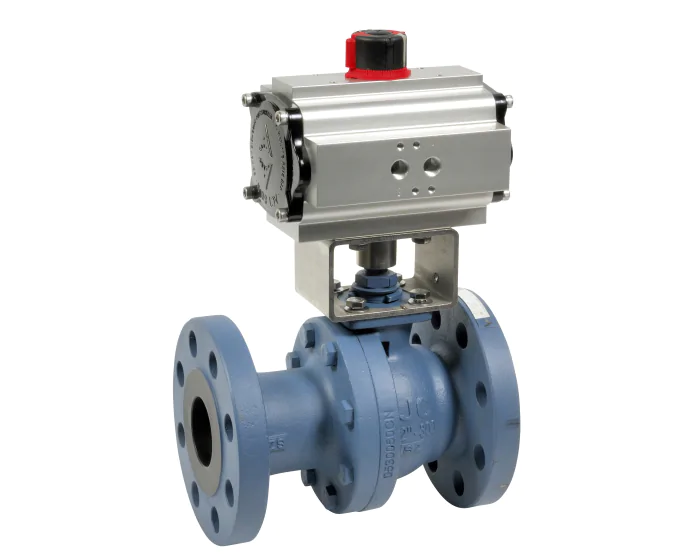

The 530AIT series JC VALVES carbon steel ball valve has an A216WCB body, a CF8M ball and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 403.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Position | Normally closed |
| Packing gland | PTFE |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | PTFE |
| Ball material | CF8M |
| Surface temperature | TX |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | JC Valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT015015100 | S1002107 |
€355.46
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT015016101 | S1002108 |
€391.01
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT020015101 | S1002109 |
€389.99
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT020016102 | S1002110 |
€445.89
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT025015101 | S1002111 |
€396.36
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT025016102 | S1002112 |
€452.26
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Double acting Carbon steel A216 WCB (1.0619) | 530AIT040015102 | S1002113 |
€533.23
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return Carbon steel A216 WCB (1.0619) | 530AIT040016103 | S1002114 |
€588.96
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT050015102 | S1002115 |
€591.54
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT050016104 | S1002116 |
€698.31
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT080015105 | S1002117 |
€1,114.26
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT080016106 | S1002118 |
€1,288.59
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT100015106 | S1002119 |
€1,631.93
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT100016107 | S1002120 |
€1,956.50
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting Carbon steel A216 WCB (1.0619) | 530AIT150015107 | S1002121 |
€3,440.74
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return Carbon steel A216 WCB (1.0619) | 530AIT150016108 | S1002122 |
€3,876.86
(excl. btw)
|
add to cart |
